DATASHEET For MP1526

Description
The MP1526 is a PNP transistor of −260 V, −15 A.
The product has constant hFE characteristics in a wide
current range, providing high-quality audio sounds.

Features
● Complementary to MN1526
● LAPT (Linear Amplifier Power Transistor)
● High Transition Frequency
● Bare Lead Frame: Pb-free (RoHS Compliant)
● VCEO----------------------------------------------------−260 V
● IC--------------------------------------------------------- −15 A
● fT-------------------------------------------------------35 MHz
● PC --------------------------------------------------------150 W

Application
● Audio Power Amplifer

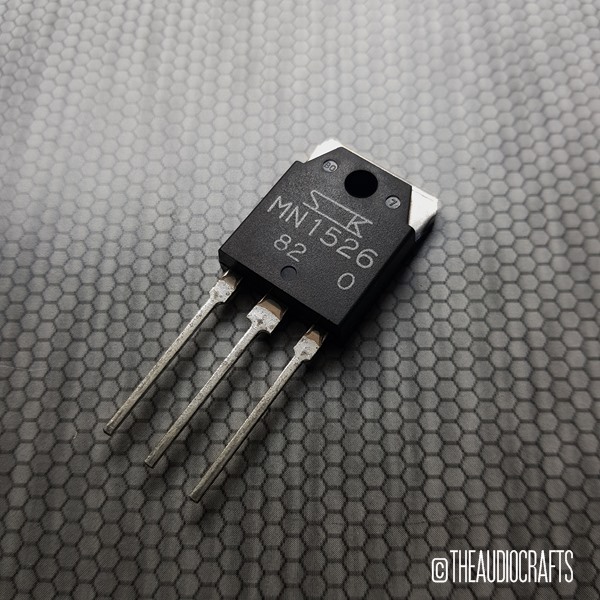

DATASHEET for MN1526

Description
The MN1526 is a NPN transistor of 260 V, 15 A. The
product has constant hFE characteristics in a wide current
range, providing high-quality audio sounds.

Features
● Complementary to MP1526
● LAPT (Linear Amplifier Power Transistor)
● High Transition Frequency
● Bare Lead Frame: Pb-free (RoHS Compliant)
● VCEO----------------------------------------------------- 260 V
● IC----------------------------------------------------------- 15 A
● fT-------------------------------------------------------60 MHz
● PC --------------------------------------------------------150 W

Application
● Audio Power Amplifier
